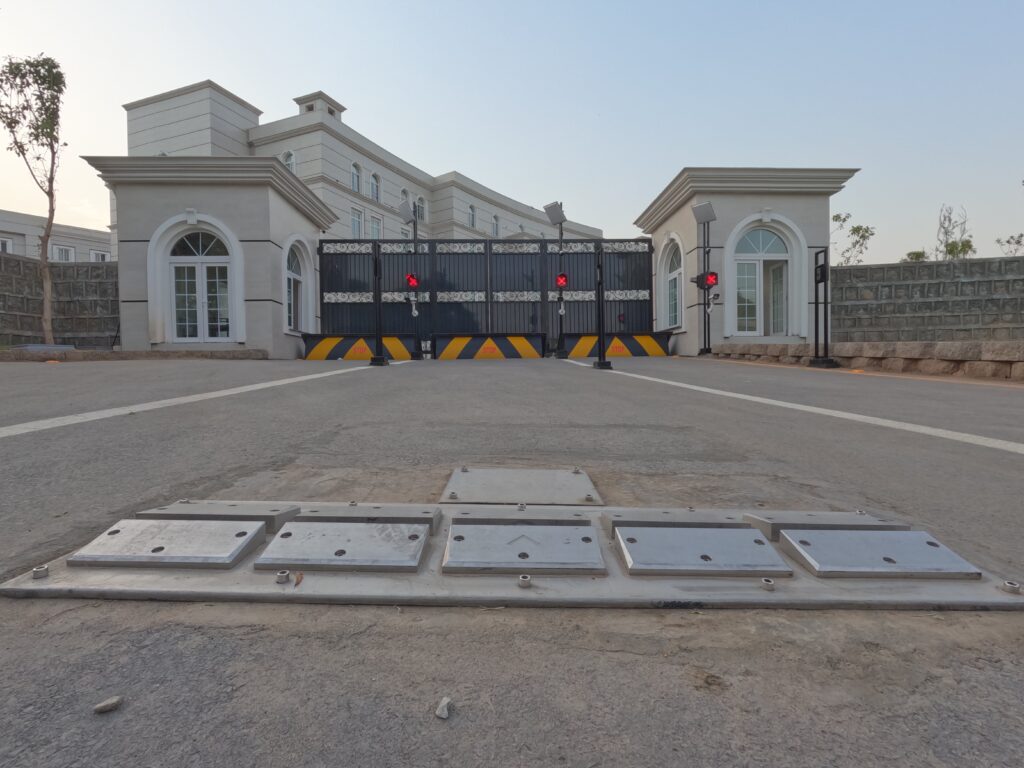

Under Vehicle Scanning System
A fixed vehicle security system is introduced as a response to growing security issues in society. Our cutting-edge system’s main aim is to detect the vehicle entirely and alarm security if it finds any issue. Our UVSS has advanced features such as Video Surveillance, Automatic Number Plate Recognition, Driver Facial Recognition, and CCTV Solutions.
UVSS are mainly applicable to high-risk areas. Such as industries, offices, educational institutes or military areas. You will surely feel secure once you will use this facility.
We present you with two main systems for under vehicle. The Area scan and Linear scan. Our advanced AI-powered scanning technology detects vehicle threats by using image and video feeds to identify explosive devices, objects, and weapons.
The best part of using UVSS is that it doesn’t disturb traffic flow. It scans the images or records the video, and the system software and database effectively detect objects and generate an output within seconds.
Product Types / Variations

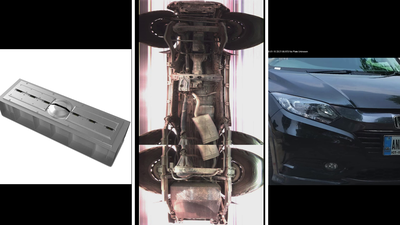

Area Scan
Area scan cameras are used for more general purposes. Under Vehicle Surveillance Systems (UVSS), they scan the 2D image in a single exposure cycle and capture both horizontal and vertical elements.
Line Scan
The Line Scan UVSS scans the image in a single shot. It has a single row of pixels. The image is constructed line by line. The quality of images is better in a line scan than in an Area scan.
Comparison: Area Scan vs Line Scan Technology
| Feature | Area Scan Technology | Line Scan Technology |
|---|---|---|
| Image Capture Method | Captures full frame images at once | Captures one line of pixels at a time, stitches into full image |
| Image Quality | High clarity, distortion-free, even if vehicle speed varies | Distortion possible if vehicle moves too fast/slow |
| Speed Dependency | Works at any vehicle speed (0–60 km/h typical) for proper imaging | Requires controlled/constant speed |
| Reliability | Stable in varying lighting, weather, and vibrations | Sensitive to lighting, vibration, and alignment issues |
| Maintenance | Lower – fewer alignment/calibration issues | Higher – frequent alignment and calibration required |
| AI/Analytics Integration | Limited capability for advanced analytics | Well-suited for FOD (AI-based) analytics |
| Coverage | Wide-angle cameras cover more area with fewer units | Narrow scan line requires precise setup and often more cameras/units |
| System Cost | Higher | Lower |
Security & Safety Features
-Intelligent High Quality Automatic under Vehicle Surveillance technology.
-Automatic Foreign object detection Using Advance FOD Algorithm.
-4096p Resolution High Quality Output Image.
-Vehicle Speed up to 60 Km/Hr. – No speed detector required.
-Color area scan technology.
-Operating Environment, -40 to +70 degree Celsius.
-Integration with Automatic Number plate Recognition (ANPR) & Driver facial Recognition Cameras.
-Easy to integrate & User friendly.
-3 Years warranty & after sale service with parts under SLA.
-The standard price range is, PKR 500,000 to 800,000 depending upon the type and requirements..
